Residential Battery Energy Storage System
Residential Battery Energy Storage System
5-16kWh energy storage system

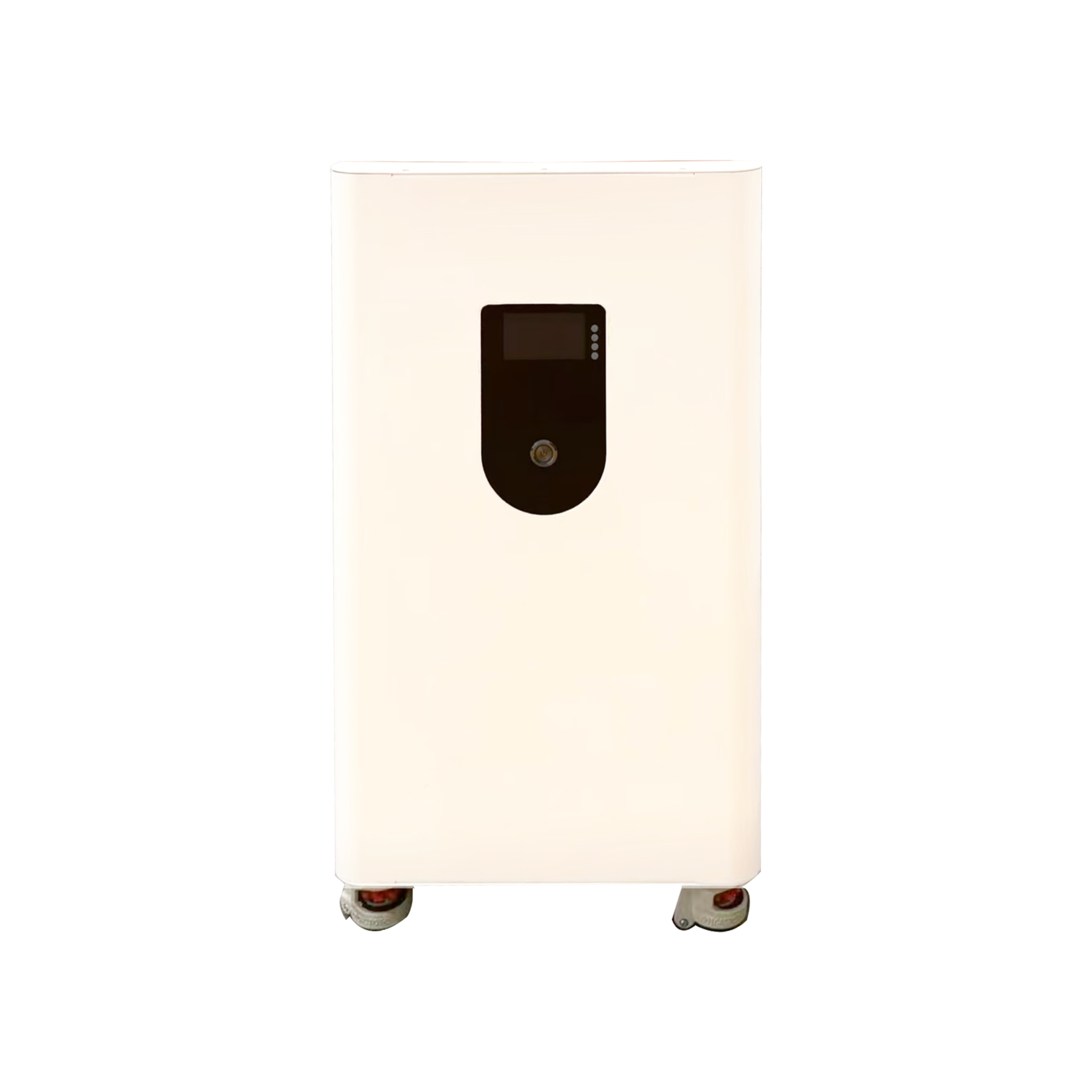

This 5-16kWh all-in-one residential energy storage system features an innovative vertical movable design with base casters and an LED screen for real-time data monitoring. Equipped with LFP cells, it supports grid and solar dual charging. Its built-in inverter delivers 220V AC to power household appliances.
| Dual Charge Mode | LiFePO4 Stable Battery |
| Support 2 charging modes, solar
charging and AC mains charger charging. Ensure that the environment can operate normally under different usage environments. |
We use lithium iron phosphate
batteries, which have the characteristics of high stability and not easy to explode. Protect everyone’s safety. |
PRODUCT PARAMETERS
| Battery Type | LiFePO4 | |||
| Nominal Capacity | 100Ah | 200Ah | 314Ah | 314Ah |
| Nominal Energy | 5120Wh | 10240Wh | 15072Wh | 16076.8Wh |
| Nominal Voltage | 51.2V | 51.2V | 48V | 51.2V |
| Charging Voltage | 58.4V | |||
| Parallel connection supported | 1-14 Parallel | |||
| Charging Current | 150A | |||
| Discharging Current | 150A | |||
| Max. Peak Current | 300A | |||
| Communication Protocol | RS485,CAN | |||
| Cycle Life | 6000 Times | |||
| Protection Functions | Cell Overvoltage / Undervoltage; System Overvoltage / Undervoltage; Charge / Discharge Overcurrent; Charge Over / Under Temperature; Short Circut Protection; Discharge Over / Under Temperature; MOSFET Over-Temperature Protection; Ambient Over-Temperature; Excessive Cell Voltage Delta | |||
| Charging Operating Temperature | 0~55℃ | |||
| Discharging Operating Temperature | -20~55℃ | |||
| Weight | 48kg | 93kg | 138kg | 148kg |
| Dimensions (H/W/D) | 410mm*340mm*735mm | |||
| Mounting Option | Floor-standing with casters or Wall-mounted | |||
| 1:Test conditions: 25 °C, 100 % depth of discharge (DOD), 1C charge & 1.5C discharge | ||||
