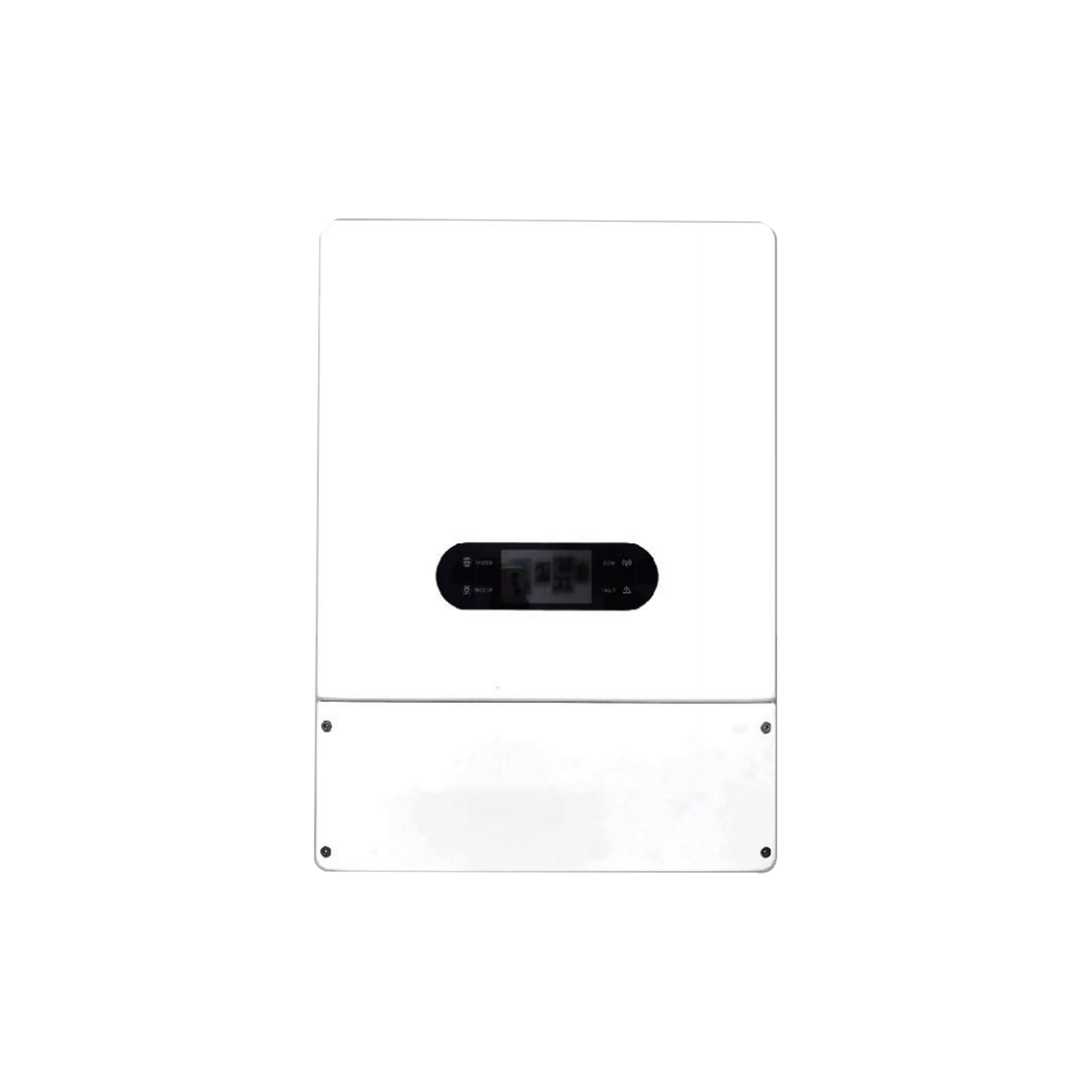

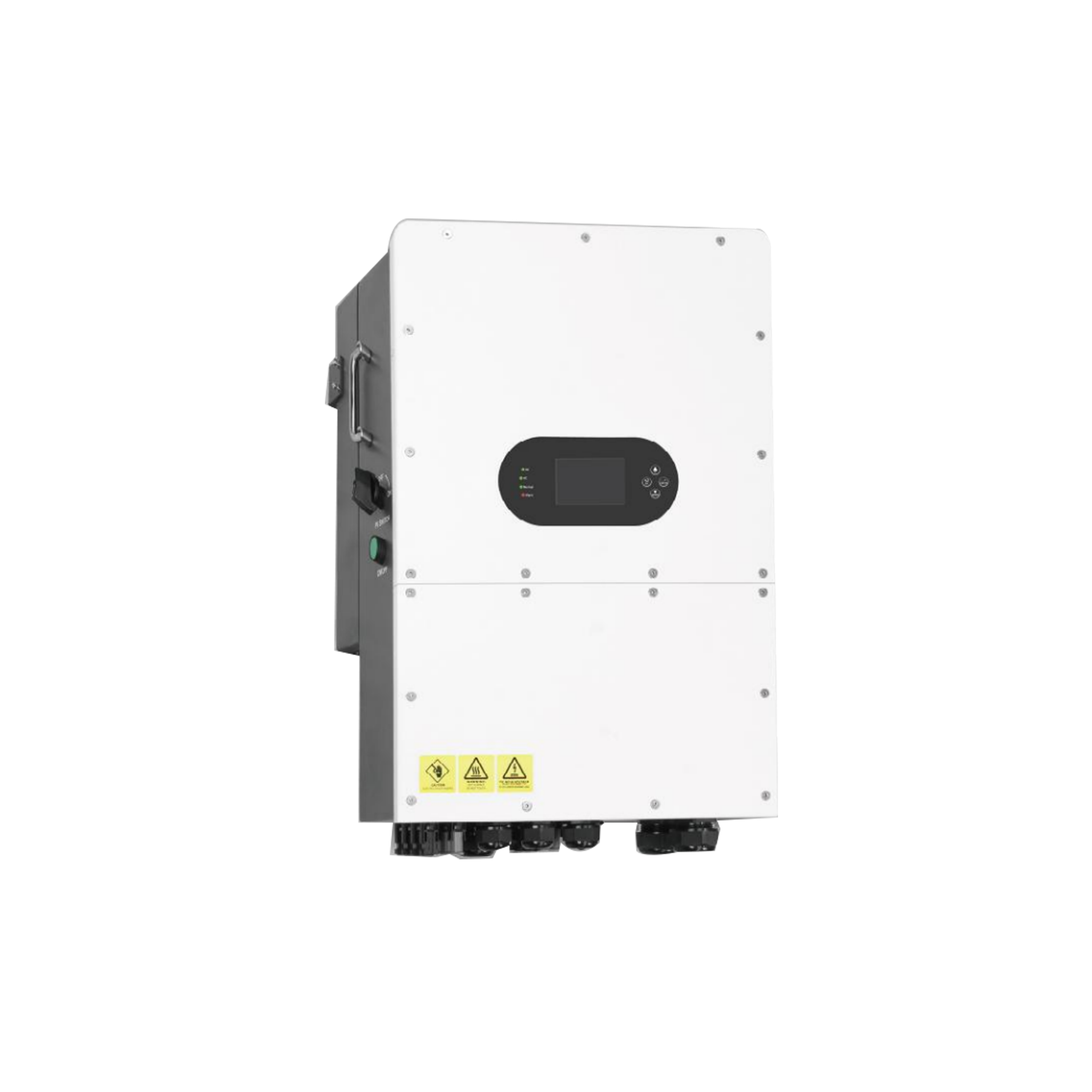

8-12kW Hybrid Inverter
8kW-12kW On-grid & Off-grid inverter
On-grid and Off-grid high frequency inverter.
The inverter adopts mcu microprocessor full digital spwm control technology and pure sine wave output.
Unique dynamic current loop control technolagy.
High efficiency, low noise, environmental protection and energy saving.
Automatic switching. enabling unattended operation.
Built-in solar charge controller with wide voltage range and ultra-high current performance.
PRODUCT PARAMETERS
| Inverter Information | |||
| Model | CON-INV8P3 | CON-INV10P3 | CON-INV12P3 |
| AC Output | |||
| Rated Power | 8000W | 10000W | 12000W |
| Rated Voltage | 380/400(3W+N+PE) | ||
| Rated Current | 11.6A | 14.5A | 17.4A |
| Voltage Range | 44-60V | ||
| Rated Frequency | 50(49-51default )(47-53 adjustable) | ||
| Max. AC Charge Current | 190A | 210A | 240A |
| Max. AC Discharge Current | 190A | 210A | 240A |
| PV INPUT | |||
| Max. Input Power | 16kW | 20kW | 24kW |
| MPPT Input Voltage Range | 200-800Vdc | ||
| Max. Input Current | 18A / 18A | 36A / 18A | 36A / 18A |
| MPPT Number | 3 | ||
| Operating Temperature Range | -25-60°C | ||
| IP Grade | IP66 | ||
| Safety Class | Ⅰ | ||
