Integrative Power Bank
Integrative Power Bank
An integrated power bank is a compact, self-contained, enclosed energy storage device that integrates a battery system and an inverter. It directly outputs AC power for use by electrical equipment. Depending on the model, the capacitance is 3kWh to 10kWh, the AC output power is 3kW to 12kW, and the output voltage is 110V/220V. This product can support customer customization.
 |
DUAL INPUT |  |
COMPLETE PROTECTION |
| ▪Support AC utility and solar dual input mode, convenient for different situations.
▪Quickly switch working modes to ensure stable power supply. |
▪More than 5 protection modes, ensure smooth operation of the product.
▪Multiple protection, protect your safety while protecting the product |
||
 |
FLEXIBILITY |  |
|
| ▪Grounding design and installation does not require a load-bearing wall.
▪Wheel design, move the product easily. |
▪Compact and light, single person installation.
▪Integrated design, no need for multi-line links, simple operation. |

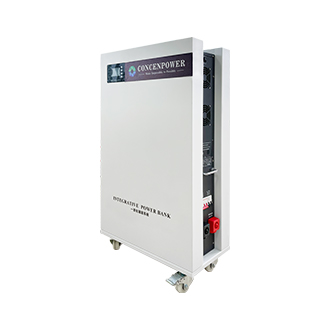

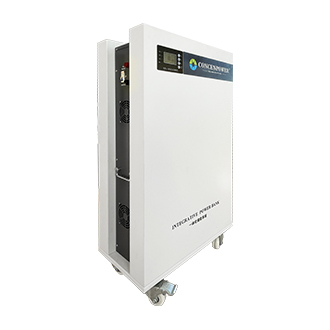

CONCENPOWER Integrative Power Bank is a fully integrated AC battery system for residential or light commercial use. Its rechargeable lithium-ion battery pack provides energy storage for solar self-consumption, time-based control, and backup.
Power Bank’s electrical interface provides a simple connection to any home or building. Its revolutionary compact design achieves market-leading energy density and is easy to install, enabling owners to quickly realize the benefits of reliable, clean power
PRODUCT PARAMETERS
| General Information | ||||||
| Product No. | CON-H53 | CON-H55 | CON-H510 | CON-H103 | CON-H105 | CON-H1010 |
| Product size | 600*300*1000 mm | |||||
| Product weight | 80kg | 91kg | 130kg | 120kg | 128kg | 130kg |
| Package size | 695*395*1150 mm | |||||
| Product gross weight | 106kg | 117kg | 156kg | 146kg | 154kg | 156kg |
| Working temperature | 0 ~ 40 °C | |||||
| Working altitude | less than 2000m | |||||
| Battery information | ||||||
| Battery type | Lithium iron phosphate battery | |||||
| Battery rate voltage | 51.2V | |||||
| Battery capacity | 5000Wh | 10000Wh | ||||
| Inverter Information | ||||||
| AC output information | ||||||
| Inverter type | Pure sine wave frequency inverter | |||||
| Inverter rate power | 3kW | 5kW | 10kW | 3kW | 5kW | 10kW |
| Inverter MAX. power | 6kW | 10kW | 20kW | 6kW | 10kW | 20kW |
| AC output voltage | 80-130V / 160-240V | |||||
| AC output frequency | 50Hz – 60Hz intelligent monitor | |||||
| Product input information | ||||||
| AC input voltage | 80-130V / 160-240V | |||||
| AC input frequency | 50Hz – 60Hz intelligent monitor | |||||
| Solar controlle | Build-in MPPT | |||||
| Solar input voltager | 72V | |||||
| Solar input current | 60A / 80A | |||||
| Protection system | ||||||
| Over / under voltage protection | YES | |||||
| Over current protection | YES | |||||
| Over / under temperature protection | YES | |||||
| DC breaker | YES | |||||
