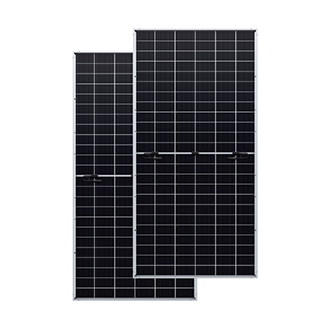

530-550W Solar Panel
530-550W Solar Panel
Solar panels are devices that convert solar radiation directly into electrical energy. The product supports single-sided design, with a power output of 530-550W, which can match different installation conditions and take into account high adaptability and high compatibility.
Solar panels are widely used in different industries. As long as it meets the installation conditions, solar module devices can be set up.
Commercial
Mainly used for enterprises and commercial power generation, supporting enterprises’ self-construction or investment co-construction. Let has the characteristics of a short investment cycle and long return cycle.
Residential
Mainly used for in household power generation, streetlighting, and equipment charging, with the advantages of small investment and no land occupation.
Utility
Mainly used in agriculture. Fishery, forestry, poverty alleviation in remote areas, etc. they need professional teams and rich experience in construction and operation.
PRODUCT PARAMETERS
| Module Type | CON–144-530M | CON–144-535M | CON–144-540M | CON–144-545M | CON–144-550M | |||||
| Test Environment | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (W) | 530 | 395 .8 | 535 | 399.5 | 540 | 403.3 | 545 | 407 | 550 | 410.7 |
| Open Circuit Voltage (V) | 49.2 | 46.12 | 49.35 | 46.26 | 49.5 | 46.41 | 49.65 | 46.55 | 49.8 | 46.69 |
| Short Circuit Current (A) | 13.71 | 11.09 | 13.78 | 11.15 | 11.2 | 13.85 | 13.92 | 11.25 | 13.99 | 14.06 |
| Maximum Power Voltage (V) | 41.35 | 12.82 | 41.5 | 38.64 | 41.65 | 38.78 | 41.8 | 38.92 | 41.95 | 39.04 |
| Maximum Power Current (A) | 38.5 | 10.28 | 12.9 | 10.34 | 12.97 | 10.4 | 13.04 | 10.46 | 13.11 | 10.52 |
| Module Efficiency(%) | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | |||||
| Tolerance | 0~+5W | |||||||||
| Maximum Svstem Voltage | 1500V(IEC) | |||||||||
| Temp . Coeff . of Voc | -0.270 %/℃ | |||||||||
| Temp . Coeff . of lsc | 0.048 %/℃ | |||||||||
| Temp . Coeff . of Pm | 0.350%/℃ | |||||||||
| Operatinatemperature | 40 to 85 ℃ | |||||||||
| Nominal operating cell temperature ( NOCT) | 45+2 ℃ | |||||||||
| Max.Series Fuse | 25A | |||||||||
