Industry / Low Frequency Inverter

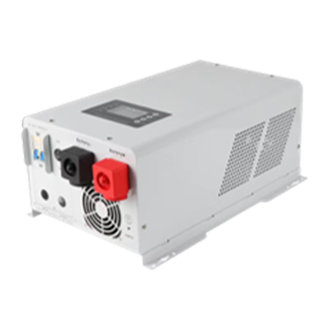

3kW – 12kW 1Phase Inverter
Cooperate product
(provide System control system)
Dual Input Mode
Wall Mounting / Stand Design
Support Any Various Type Battery
reduce the position occupied during installation.
 |
 |
 |
 |
| Villas | Nomadic area | Farm | Household |
PRODUCT PARAMETERS
| Model | CON-EN4024D | CON-EN5048D | CON-EN6048D | CON-EN8048D | CON-EN10048D | CON-EN12048D |
| Rated power | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| Inverter Output | ||||||
| Output waveform | Pure sine wave / same as input (bypass mode) | |||||
| Output voltage | 120Vac / 240Vac Split phase, 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | |||||
| DC Input Voltage | 24Vdc | 48Vdc | 48Vdc | 48Vdc | 48Vdc | 48Vdc |
| Output Voltage | Depends on battery type | |||||
| Charger Breaker rate | 20A | 30A | 30A | 50A | 80A | 80A |
| Max. Charge Power | 50A | 50A | 50A | 70A | 85A | 100A |
| Wall Mounting Inverter | ||||||||
| Rated power | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| Battery voltage | 12/24/48V | 12/24/48V | 24/48V | 24/48V | 24/48V | 48V | 48V | 48V |
| Charging current | 60A | |||||||
| PV input port | One route(60A) | |||||||
| PV input voltage range | 15V-180V(12V system); 30V-180V(24V system); 60V180V(48V system) | |||||||
| DC input voltage range | 10.5VDC-15VDC (single battery voltage12V) | |||||||
| AC input voltage range | 110VAC:(80-130) VAC; 220VAC:(160-260)VAC/(130-280)VAC, can adjust at site | |||||||
| Output voltage | 200V / 210V / 220V / 230V / 240V can adjust at site | |||||||
