Solar Panel
100-410W Flexible Panel

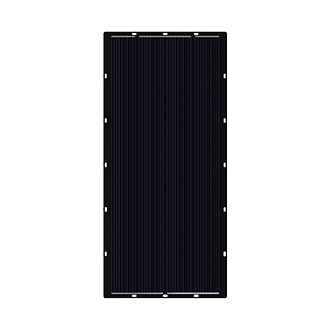

100-410W Flexible Panel

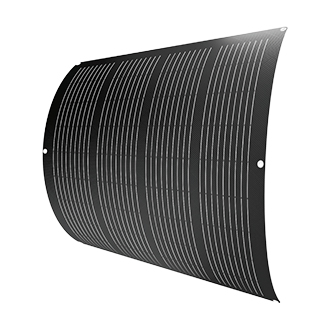

This type of solar panel has flexible and bendable characteristics, making it suitable for applications that require lightweight and bendable power sources.
▪ 95% Light Transmittance
▪ 2.5mm Thickness
▪ More Sunlight Absorption
▪ Bendable Maximum flexibility
▪ 3.63kg/m² Weight
▪ Easy Installation (pre-drilled holes)

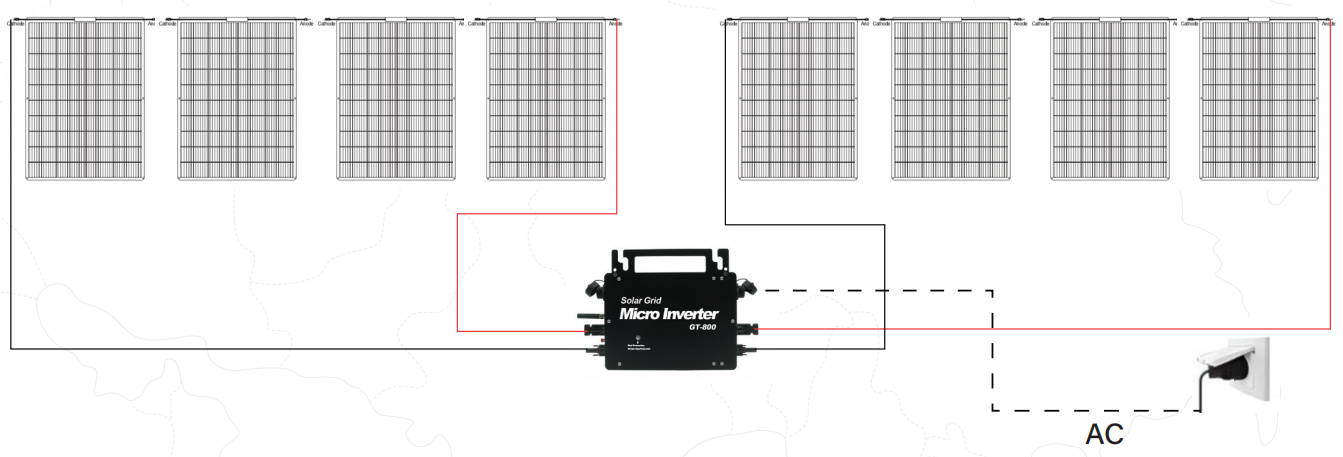

800W SOLAR SYSTEM SETUP
Every 4pcs 11oW flexible solar panels series connection, then connect to micro inverter through two extension PV cables.
PRODUCT PARAMETERS
| Model Type | CON110W-18M | CON200W-20M | CON260W-36M | CON410W-27.5M |
| ELECTRICAL DATA | ||||
| Peak Power(Pmax) | 110W | 200W | 260W | 410W |
| Maximum Power Voltage(Vmp) | 10.06V | 22.62V | 40.87V | 32.45V |
| Maximum Power Current(lmp) | 10.94A | 8.85A | 6.37A | 12.64A |
| Open Circuit Voltage(Voc) | 11.76V | 26.57V | 47.51V | 37.78V |
| Short Circuit Current(lsc) | 11.76A | 9.36A | 6.72A | 13.3A |
| Module Efficiency(%) | 17.83 | 19.8 | 18.21 | 22.5 |
| THERMAL CHARACTERISTICS & OPERATING CONDITIONS | ||||
| Maximun System Voltage(V) | 1000 | |||
| Maximum Series Fuse Rating(A) | 10 | |||
| Power Tolerance | 0～+3% | |||
| Pmax Temperature Coefficients(W/℃) | -0.350% | |||
| Voc Temperature Coefficients(V/℃) | -0.270% | |||
| Isc Temperature Coefficients(A/℃) | +0.048% | |||
| NOCT Nominal Operating Cell Temperature(℃) | 45±2 | |||
| Operating and Storage Temperature(℃) | -40～+85 | |||
| MECHANICAL CHARACTARISTICS | ||||
| Cell Type | 166*83Mono | 210*105Mono | 182*91Mono | 182*91Mono |
| No. of Cells | 36(4*9) | 40(4*10) | 72(4*18) | 110(10*11) |
| Dimensions | 730*845*2.5mm | 1135*905*3mm | 1752*815*3mm | 1920*1100*3mm |
| Weight | 2.3kg | 3.7kg | 5.2kg | 7.94kg |
| Junction box | IP67 | IP65/IP67 | IP65/IP67 | IP65/IP67 |
| Output cables | 4m㎡-90cm cables+mc4 | 2.5m㎡-50cm cables+mc4 | 4m㎡-50cm cables+mc4 | |
| MaxWind Load/Snow Load | 2400Pa/5400Pa | |||
| PACKING WAY | ||||
| 20FT | Packages/PCS | |||
| 40HQ | Packages/PCS | |||
| STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C. | ||||
