Inverter

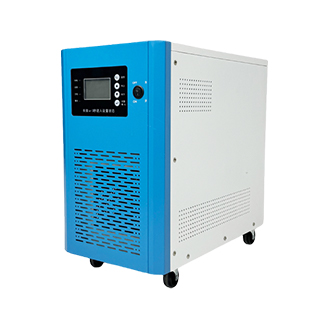

Industry Frequency Inverter
1.Wiring Diagram (Wall-mount type)
Battery types
Gel Battery: Please set the corresponding battery mode if you connect the lead-acid battery and GEL battery.
Lithium iron phosphate: Pls set the corresponding lithium iron phosphate battery mode if you connect the lithium iron phosphate battery and set the corresponding battery string numbers.
Ternary lithium battery: Please set the corresponding ternary lithium battery mode if you connect the ternary lithium battery and set the corresponding battery string numbers.
Customization: Please enter the customized mode of battery type and set the corresponding charging voltage to ensure normal charging of the inverter if you use other type batteries. If you cannot confirm, please contact the technical personnel of the manufacturer.
2.Industry frequency inverter

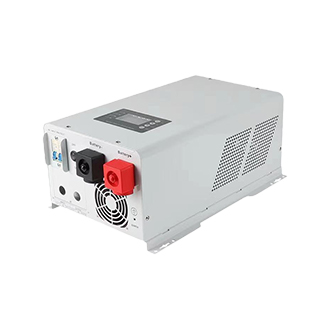

110V/220V/dual output
Sine wave power frequency inverter
Built-in MPPT
PV + AC dual input design
Working mode switching within 5ms
lt can be used not only with lithium battery energy storage system, but also with lead acid battery system.
PRODUCT PARAMETERS
| Wiring Diagram Inverter | |||||||||
| Model | Capacity | 2kW | 3kW | 4kW | 5kW | 6kW | 8kW | 10kW | 12kW |
| Peak capacity | 6kW | 9kW | 13kW | 15kW | 18kW | 24kW | 30kW | 36kW | |
| Capac Battery voltageity | 12/24/48V | 12/24/48V | 12/24/48V | 12/24/48V | 12/24/48V | 12/24/48V | 48V | 48V | |
| Inbuilt MPPT | |||||||||
| Charging current | 60A | 60A | 60A | 60A | 60A | 60A | 60A | 60A | |
| PV input port | One route(60A) | ||||||||
| PV input voltage range | 15V-180V(12Vsystem):30V-180V(24Vsystem);60V180V(48V system) | ||||||||
| Max PV input capacity | 60A: 720W(12Vsystem); 1440W(24Vsystem); 2880W(48Vsystem) | ||||||||
| Max charging current, can be adjustable | OFF/130A/60A(can switch OFF PV charging) | ||||||||
| MPPT Efficiency | ≈90% | ||||||||
| Unattended mode | Inverter is OFF mode: MPPT can charge battery if there is sunshine | ||||||||
| Input | |||||||||
| DC input voltage range | 10.5VDC-15VDC (single battery voltage12V) | ||||||||
| AC input voltage range | 110VAC:(80-130) VAC; 220VAC:(160-260)VAC/(130-280)VAC, can adjust at site | ||||||||
| AC input frequency | 45HZ-65HZ auto test | ||||||||
| AC charging current can choose | OFF (can switch off AC charging function) | ||||||||
| Output | |||||||||
| Output wave | PURE SINE WAVE | ||||||||
| Output efficiency | ≈90% | ||||||||
| Output voltage | 200V/210V/220V/230V/240V can adjust at site | ||||||||
| Output frequency | 50Hz/60Hz can adjust at site | ||||||||
| ECO mode and loss | 5W | ||||||||
| Working mode | |||||||||
| Inverter working mode | AC priority, DC priority, ECO mode, unattended mode, generator mode | ||||||||
| LCD display working mode | Normal mode/ “ON” mode | ||||||||
| Battery parameter | |||||||||
| Battery types | Lead-acid battery/GEL battery/ lithium iron phosphate battery / ternary lithium battery/customized battery | ||||||||
| Battery customized parameters | Constant voltage charging, Floating charging, battery recover, AC recover, low voltage alarm and low voltage protection | ||||||||
| Battery charging types | Lead-acid: three steps, constant current charging, constant voltage charging,floating charging Lithium battery: constant current charging, constant voltage charging | ||||||||
| Lithium battery string numbers can choose | lithium iron phosphate battery:3.2v single one ternary lithium battery:3.7V single one | ||||||||
| General data | |||||||||
| Protections | Battery low voltage/battery over voltage/overload protection high temperature protection / charging type protections | ||||||||
| LCD display | |||||||||
| LCD display | AC station, DC station, charging station and alarm | ||||||||
| Front panel display | Working station, input and output voltage, PV parameters and inverter parameters | ||||||||
| Language | Chinese/English can choose | ||||||||
| Transfer time | ＜5ms | ||||||||
| Heat-dissipating type | Intelligent temperature control | ||||||||
| Communications | RS232/RS485(can choose) | ||||||||
| Working temperature | (-10℃~40℃) | ||||||||
| Altitude | s3000m | ||||||||
| Inverter size (L*V*Hmm) | 495*320*220 | 560*390*200 | |||||||
| Packing size (L*W*Hmm) | 600*380*290 | 715*420*316 | |||||||
| Net weight (kg) (Appx.) | 16.5 | 19.5 | 22 | 25 | 28 | 31.5 | 36 | 40 | |
| Gross weight (kg) (Appx.) | 19.5 | 22 | 25 | 28 | 31 | 36 | 41 | 45 | |
| Dual Output lnverter | ||||||
| Model | CON4024D | CON5048D | CON6048D | CON8048D | CON10048D | CON12048D |
| Continuous Output Power | 4000W | 5000W | 6000W | 8000W | 10kW | 12kW |
| Surge Rating(20Secs)Inrush Current | 12000W | 15000W | 18000W | 24kW | 30kW | 36kW |
| Inverter Output | ||||||
| Output waveform | Pure sine wave / same as input (bypass mode) | |||||
| Nominal efficiency | >88%(peak) | |||||
| Line Mode Efficiency | >95% | |||||
| Power Factor | 0.9-1.0 | |||||
| Nominal output voltage rms | 120Vac/240Vac Split phase | |||||
| Output Voltage Regulation | +10% rms | |||||
| Output frequency | 50Hz + 0.3Hz / 60Hz + 0.3Hz | |||||
| Short Circuit proection | Yes, current limit function (fault after 1sec) | |||||
| Typical Transfer Time | <8ms | |||||
| THD | <10% | |||||
| Inverter Output | ||||||
| Nomial input Voltage | 24Vdc | 48Vdc | ||||
| Minimum Start Voltage | 20.0Vdc | 40.0Vdc | ||||
| Low Battery Alarm | 21.0vdc | 42.0Vdc | ||||
| Low Battery Trip | 20.0Vdc | 40.0Vdc | ||||
| High Voltage Alarm | 32.0Vdc | 64.0Vdc | ||||
| Higg battery voltage discovery | 31.0Vdc | 62.0Vdc | ||||
| Low Battery Voltage Recover | 26.0Vdc | 52.0Vdc | ||||
| ldle Consumption-Search Mode | <25W when power saver on | |||||
| Charger | ||||||
| Output Voltage | Depends on battery type | |||||
| Charger Breaker rating | 20A | 30A | 30A | 50A | 80A | 80A |
| Max Charge Power Rate | 50A | 60A | 50A | 70A | 85A | 100A |
| Battery initial voltage for start up | 20-31.4Vdc | 40-62.8Vdc | ||||
| Over Charge Protection S.D. | 31.4Vdc | 62.8Vdc | ||||
| Bypass & Protection | ||||||
| Input Voltage Waveform | Sine Wave (Grid or Generator) | |||||
| Nominal Voltage | 100/110/120Vac | |||||
| Low Voltage Trip | 80V/90Vac+4% | |||||
| Low Voltage Re-engage | 90V/100Vac+4% | |||||
| High Voltage Trip | 140Vac+4% | |||||
| High Voltage Re-engage | 135Vac+4% | |||||
| Max Input Ac Voltage | 150Vac | |||||
| Nominal input Frequency | 50Hz or 60Hz | |||||
| Low Freg Trip | 47+0.3Hz for 50Hz, 57+0.3Hz for 60Hz | |||||
| Low Freg Re-engage | 48+0.3Hz for 50Hz, 58+0.3Hz for 60Hz | |||||
| High Freg Trip | 55+0.3Hz for 50Hz, 65+0.3Hz for 60Hz | |||||
| High Freg Re-engage | 54+0.3Hz for 50Hz, 64+0.3Hz for 60Hz | |||||
| Overload Protection (SMPS Load) | Circuit Breaker | |||||
| Output Short Circuit Protection | Circuit Breaker | |||||
| Bypass Breaker Rating | 30A | 40A | 40A | 50A | 80A | 80A |
| Transfer switch rating | 30A | 40A | 40A | 40A | 40A | 40A |
| Bypass without battery connected | ||||||
| Max bypass current | 40A | 40A | 40A | 40A | 40A | 40A |
| Bypass overload current alarm | 45A | 45A | 45A | 45A | 45A | 45A |
| Mechanical Specifications | Yes | |||||
| Mouting | Wall Mount | |||||
| Inverter Dimensions (L*W*H) | 460*330*185mm | 588×415*200mm | ||||
| Inverter Weight | 27kg | 40kg | 40kg | 60kg | 66kg | 70kg |
| Shipping Dimensions (L*W*H) | ||||||
| Shipping Weight | 29kg | 42kg | 42kg | 64kg | 70kg | 75kg |
| Display | Status LEDs + LCD | |||||
