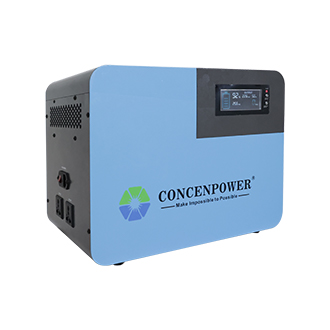

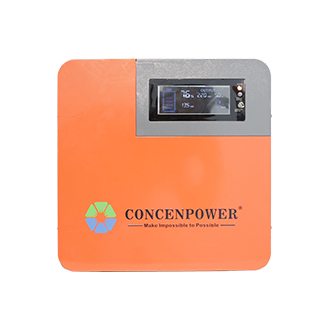

Portable Power Station
IBO
According to different models, the capacitance is 0.5kWh~1.8kWh, the AC output power is 0.3kW~2kW, and the voltage is 110V/220V. The product is managed and operated through the built-in intelligent management system, which is very convenient to use.
The portable power station is specially designed for customers with mobile power needs. The product power ranges from 500W to 1000W, which can meet the needs of different electrical appliances. Customers can use this product to charge mobile electronic devices such as mobile phones and laptops, which solves the problem of power shut down of mobile devices during the journey; secondly, for customers traveling outdoors, this product can drive high-power electrical appliances, such as Electric rice cooker, kettle and other heating equipment.
In order to solve the shortcoming of the traditional plastic products being fragile, this product adopts a metal shell to make the product more durable and avoid damage to the product due to bumps during use.
 |
DUAL INPUT

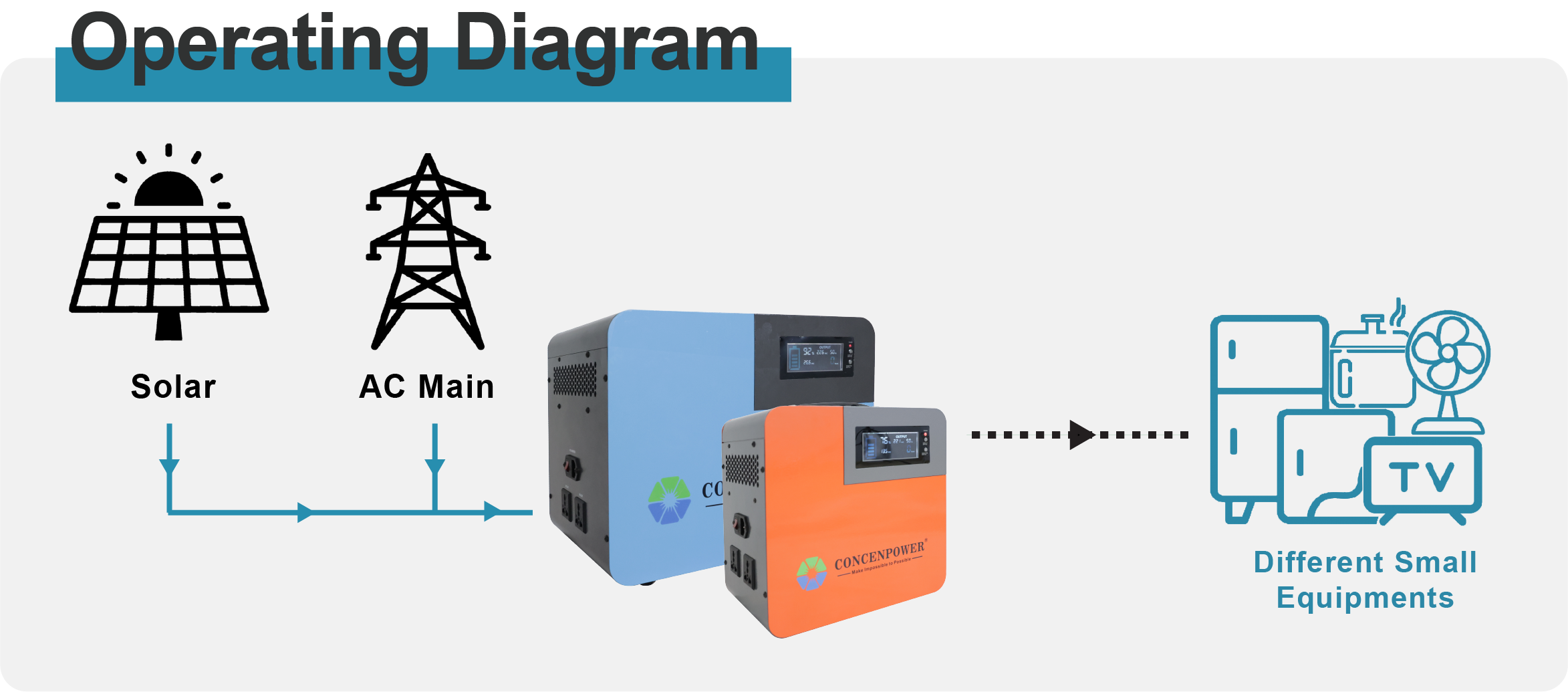

Support AC utility and solar dual input mode, convenient for different situations. Quickly switch working modes to ensure stable power supply. |
 |
COMPLETE PROTECTION
More than 5 protection modes, ensure smooth operation of the product. Multiple protection, protect your safety while protecting the product. |
 |
STRONG SHELL
Solve the shortcomings of traditional plastic products fragile. Not afraid of heavy pressure, durable. |
 |
SEPARATED DC + AC DESIGN
The AC part and the DC part are designed on both sides of the chassis, which not only increases the safety factor of the user, but also improves the product life. |
PRODUCT PARAMETERS
 |
 |
|||||
| General information | ||||||
| Product No. | IBO-55 | IBO-510 | IBW-1010 | IBW-1220 | IBW-2020 | IBW-2520 |
| Product Size | 310*300*200 mm | 310*460*280 mm | ||||
| Working temperature | 0-40°C | |||||
| Working altitude | less than 2000m | |||||
| Battery information | ||||||
| Battery type | Lithium iron phosphate battery | |||||
| Battery capacity | 614Wh | 614Wh | 1024Wh | 1280Wh | 2048Wh | 2560Wh |
| AC output information | ||||||
| Inverter type | Pure sine wave inverter | |||||
| Inverter rated power | 500W | 1000W | 1000W | 2000W | 2000W | 2000W |
| Inverter MAX. power | 1000W | 2000W | 2000W | 4000W | 4000W | 4000W |
| AC output voltage | 80-130V/160-240V | |||||
| AC output frequency | 50Hz – 60Hz intelligent monitor | |||||
| Product input information | ||||||
| AC input voltage | 80-130V / 160-240V | |||||
| AC input frequency | 50Hz- 60Hz intelligent monitor | |||||
| Solar controller | Built-in Solar Controller | |||||
| Solar input voltage | 24V | 36V | ||||
| Solar input current | 10A | |||||
| Protection system | ||||||
| Over/ Under voltage protection | YES | |||||
| Over current protection | YES | |||||
| Over/ Under temperature protection | YES | |||||
| Recommend solar information | ||||||
| Solar panel power | 240W | 360W | ||||
| Estimated full charge time | appx. 4 hrs | appx. 3.5 hrs | appx. 4 hrs | appx. 6 hrs | appx. 7.5 hrs | |
