Industry ESS System
Industry Energy Storage System
Industry Energy storage system

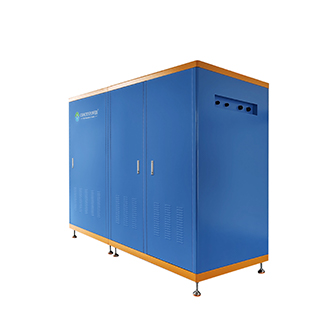

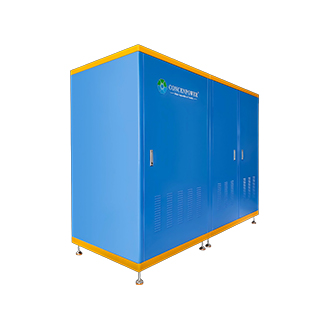

BOX-type Cabinet

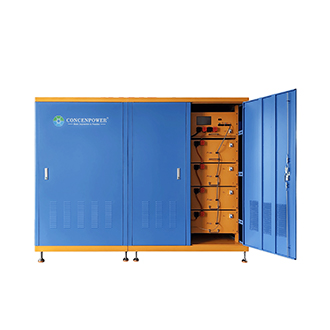

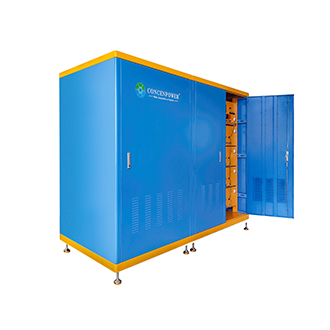

A single battery cabinet is composed of 8 battery packs connected in series, with a voltage of 409.6V. A single battery cabinet can support a 3-phase inverter. In addition, 1 to 16 battery cabinets can be directly connected in parallel, and the capacity of a single cabinet can reach 80 kWh to 114 kWh.
The flexible and diverse product combination of the industrial and commercial energy storage system can meet the different energy storage needs in the industrial and commercial fields. Support the use of mechanical equipment in large factories and commercial places.
 |
Automatic switching of two-way mode
Automatically detect the operation of the system. When the battery is exhausted, it automatically switches to AC mains mode. Built-in timer, you can set the operating time of different working modes independently. |
 |

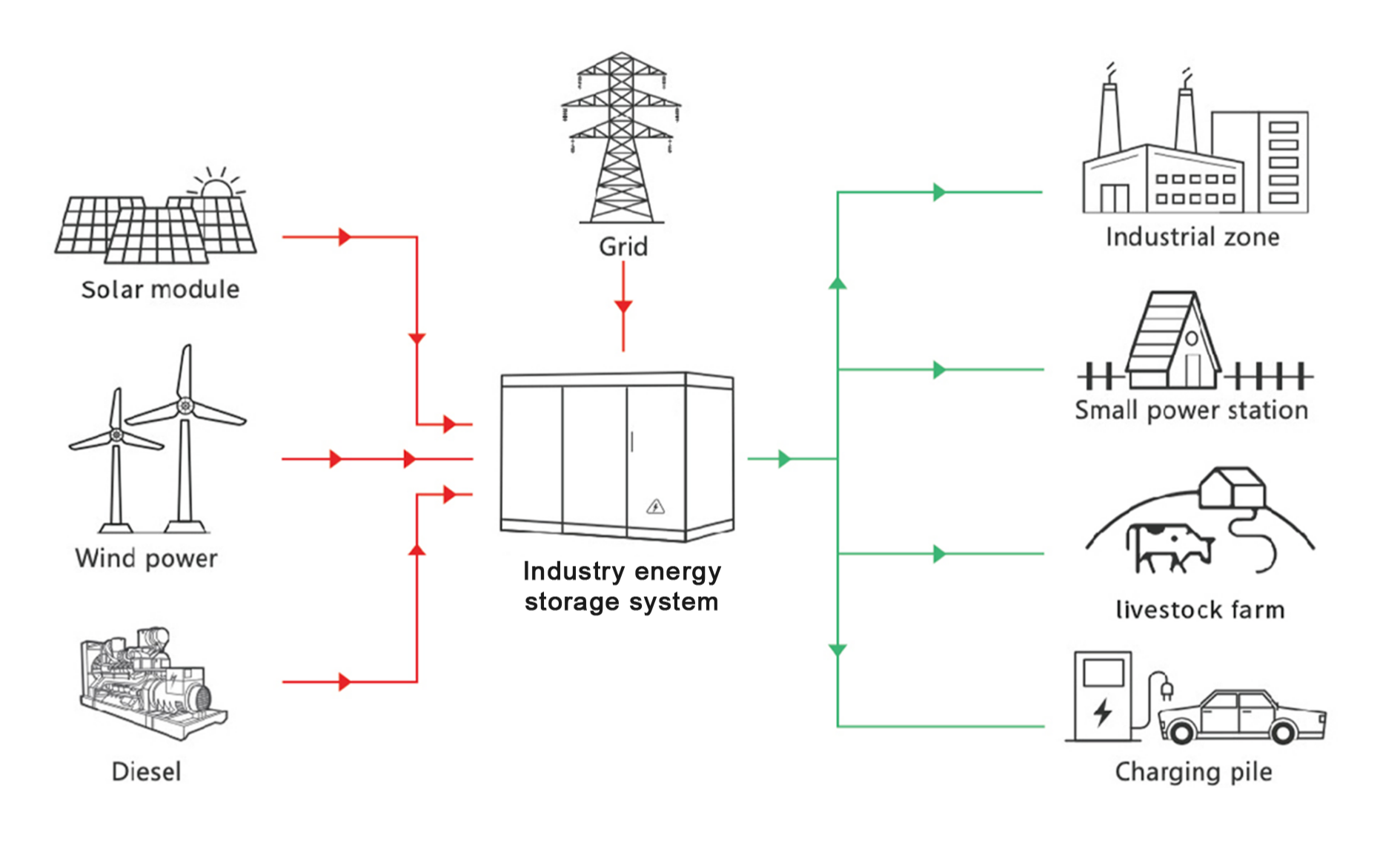

Multiple input modes
Suitable for hybrid energy storage such as Solar, diesel, and wind power. Off-grid energy storage. |
PRODUCT PARAMETERS
| Model | CIC20 | CIC30 | CIC40 | CIC50 | CIC60 | CIC80 | CIC100 |
| Inverter parameters | |||||||
| Inverter power | 20KVA | 30KVA | 40KVA | 50KVA | 60KVA | 80KVA | 100KVA |
| Inverter type | Industry frequency inverter | ||||||
| Phase | 3 phase+N+G | ||||||
| AC input range | 380Vac ± 20% | ||||||
| Frequency range | 45Hz～55Hz | ||||||
| Output voltage | Battery mode：380Vac ± 3%；AC mode：380Vac ± 20% | ||||||
| Frequency range (ACs mode) | 45Hz～55Hz | ||||||
| Frequency range (Battery mode) | 50Hz ± 0.1Hz | ||||||
| Overload (AC mode) | AC mode (100%～110%: 10 minutes; 110%～130%: 1 minute; >130%: 1 second) | ||||||
| Overload (Battery mode) | Battery mode (100%～110%: 30 seconds; 110%～130%: 10 seconds; >130%: 1 second) | ||||||
| Current peak ratio | 3：1 max | ||||||
| Total harmonic distortion | Linear load <3%; non-linear load | ||||||
| Balanced load voltage | < ± 1% | ||||||
| Unbalanced load voltage | < ± 5% | ||||||
| Switching time | <10ms | ||||||
| Waveform | Pure sine wave inverter | ||||||
| Maximum efficiency | 85% | ||||||
| Noise | <58dB（1m distance） | ||||||
| Load monitoring | Yes | ||||||
| PV input MPPT | |||||||
| System voltage | 384V | ||||||
| Rated current | 100A | ||||||
| Charging method | MPPT automatic maximum power point tracking | ||||||
| Dynamic response recovery time | ≤10s | ||||||
| Static power consumption | ≤500us | ||||||
| Overall efficiency | ≤2W | ||||||
| Voltage range | ≥96.5% | ||||||
| MPPT working voltage range | 384V：DC450V-750V； | ||||||
| Maximum PV input power | 36kW | ||||||
| Battery parameters | |||||||
| Battery type | Lithium iron phosphate Battery(LiFePO4) | ||||||
| Battery cabinet capacity | 114.4kWh（Single battery cabinet） | ||||||
| Battery nominal voltage | 409.6V | ||||||
| Working voltage range | 320～467.2V | ||||||
| Continuous output current | 120A | ||||||
| Peak output current | 150A,1s | ||||||
| Working temperature range | -10℃～50℃ | ||||||
| General data | |||||||
| Working temperature range | 0～40℃ | ||||||
| Working altitude | <95% and no condensation | ||||||
| Working relative humidity | <1000m (power decreases by 1% for every 100m increase, up to 5000m) | ||||||
| External communication | RS485 + CAN | ||||||
| Grid regulation | Yes | ||||||
| Safety supervision | Yes | ||||||
| Waterproof device | Yes | ||||||
| Surge protection device | Yes | ||||||
| Protection level | IP65 | ||||||
| Protection | Input polarity reverse protection; output polarity reverse protection; high voltage protection; low voltage protection; short circuit protection; over temperature protection |
||||||
| Cooling device | Air-cooled | ||||||
| Fire protection device | Aerosol | ||||||
| Application area | Off-grid (backup) | ||||||
| Dimensions（L*W*H） | 2437*1000*1824mm | ||||||
| Weight ( Kg ) | 1616.1 | 1676.1 | 1726.1 | 1776.1 | 1896.1 | 1976.1 | 2276.5 |
