INDUSTRY
ESS      SYSTEM

Industry ESS system designed for factories, small commercial distribution areas and other usage scenarios. It can effectively start and support the use of a variety of industrial and commercial equipment. At the same time, we can provide customers with customized solutions.

Industry + ESS

Industry + ESS Battery energy storage system Portable power station Industry ESS system Inverter Solar Panel

Be Partner

Be Partner Customization Contact Community Case Download Privacy Policy

APPLICATION

  • INDUSTRY ENERGY STORAGE SYSTEM
    INDUSTRY ENERGY STORAGE SYSTEM
  • INDUSTRIAL APPLICATIONS
    INDUSTRIAL APPLICATIONS
  • INDUSTRIAL APPLICATIONS
    INDUSTRIAL APPLICATIONS
  • INDUSTRIAL USE
    INDUSTRIAL USE
  • PHOTOVOLTAIC FARMS
    PHOTOVOLTAIC FARMS
  • EMERGENCY BACKUP POWER SUPPLY
    EMERGENCY BACKUP POWER SUPPLY
  • COMMERCIAL USE
    COMMERCIAL USE

STRENGTH

Customization

Customization

Based on different customer needs,
local natural conditions
 (such as sunlight time, temperature, etc.)
and local infrastructure construction,
we design customized products to
meet customer needs to the greatest extent.
Wind,solar and diesel complementarity

Wind,solar and diesel complementarity

The system can support wind power,
solar power,
gas generator and
AC utility electricity input.

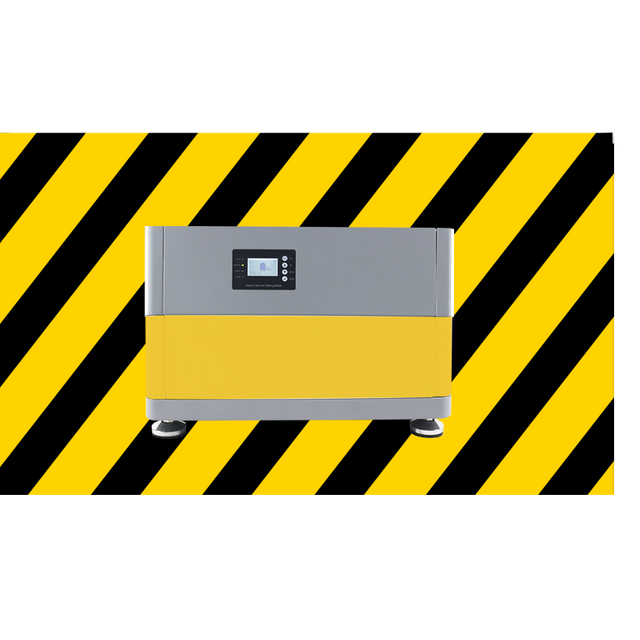

Industry & Mining Power Supply
工矿1
The system adopts a stacked battery pack and inverter design, and distributors can freely combine the energy storage system capacity and inverter power according to the local market to cater to the local market. The battery capacity of this product is 2.66kwh, 5kwh, 10kwh, and can be matched with a 3-10Kw inverter
5kwh battery pack
1-3 Packs
Number of Packages 1 2 3
Usable Capacity 5.12kWh 10.24kWh 15.36kWh
Inverter
Rate Output Power 5000w/10000w
Solar Input Current MAX. 80A *1
10kwh battery pack
1-3 Packs
Number of Packages 1 2 3
Usable Capacity 10.24kWh 20.48kWh 30.72kWh
Inverter
Rate Output Power 5000w/10000w
Solar Input Current MAX. 80A *1
Industry Energy storage system
Model CIC20 CIC30 CIC40 CIC50 CIC60 CIC80
Battery cabinet capacity 114.4kWh（Single battery cabinet）
Battery nominal voltage 409.6V
Inverter power 20kW 30kW 40kW 50kW 60kW 80kW
MPPT voltage 384V
mppt Rated current 100A
gsy1
A single battery cabinet is composed of 8 battery packs connected in series, with a voltage of 409.6V. A single battery cabinet can support a 3-phase inverter. In addition, 1 to 16 battery cabinets can be directly connected in parallel, and the capacity of a single cabinet can reach 80 kWh to 114 kWh.
The flexible and diverse product combination of the industrial and commercial energy storage system can meet the different energy storage needs in the industrial and commercial fields. Support the use of mechanical equipment in large factories and commercial places.
gsy1
A single battery cabinet is composed of 8 battery packs connected in series, with a voltage of 409.6V. A single battery cabinet can support a 3-phase inverter. In addition, 1 to 16 battery cabinets can be directly connected in parallel, and the capacity of a single cabinet can reach 80 kWh to 114 kWh.
The flexible and diverse product combination of the industrial and commercial energy storage system can meet the different energy storage needs in the industrial and commercial fields. Support the use of mechanical equipment in large factories and commercial places.
Industry Energy storage system
Model CIC20 CIC30 CIC40 CIC50 CIC60 CIC80
Battery cabinet capacity 114.4kWh（Single battery cabinet）
Battery nominal voltage 409.6V
Inverter power 20kW 30kW 40kW 50kW 60kW 80kW
MPPT voltage 384V
mppt Rated current 100A

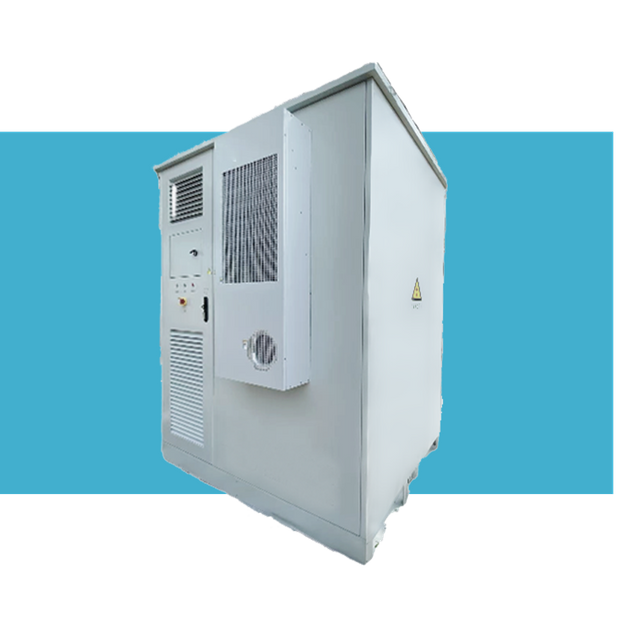

PCS
2
On And off-Grid Integrated System
Model Type CON-SESS-30K CON-SESS-40K CON-SESS-50K CON-SESS-60K
Solar Parameters
Rate Input Voltage 600Vac
MPPT MAX.
Input Current		 40A * 4 road
Battery Parameters
Battery Configuratio 1P16S*10 1P16S*11 1P16S*12 1P16S*7
Rated Capacity 51.2kWh 56.32kWh 61.44kW 100.352kWh
Rated Voltage 409.6Vdc 460.8Vdc 512Vdc 358.4Vdc
AC Side Parameters (Grid Side)
Rated Output Power 30kW 40kW 50kW 60kW
Max. Output Current 45.6A 60.7A 75.8A 91A
1
Energy Storage Cabinet
Model CON-SES Series -125KW/215KWh
Battery type LFP (lithium iron phosphate)
Rated capacity 215KWh
Rated power 125KW
16
The product names in the above images are On And off-Grid Integrated System,Energy Storage Cabinet,Container Energy Storage System(Customizable).
Industrial and Commercial Energy Storage System Solutions.On the basis of existing utility grid, energy storage systems are added to achieve precise energy management and backup power functions for emergency loads.
Container Energy Storage System(Customizable)
Product Introduction：
All-in-one system combining LFP batteries, PCS, fire protection, and intelligent temperature control with a standard container design for easy transport.
High-performance 1500V energy storage system featuring high energy density, advanced thermal management, redundant fire protection, and active battery balancing.
Optimized system design and temperature control technology ensure low system loss and high safety.
Includes features such as PQ, VF, VSG, SVG, and black start capabilities.
Offers high and low voltage ride through, fast power response, full reactive power
compensation, and strong grid compatibility.
Easy-to-use communication interface for easy system management and scheduling.
Durable IP54 protection level for outdoor use and strong environmental adaptability.
One-stop delivery for a short installation and commissioning cycle.
UPS
HT11
Model CON-HT1106XS CON-HT1106XL CON-HT1110XS CON-HT1110XL CON-HT1115XS CON-HT1120XS
Capacity 6KVA 6KVA 10KVA 10KVA 15KVA 20KVA
Input voltage range 110～288VAC  (220/230/240VAC)
Rated output Voltage 220/230/240VAC
网页_17_4356_4356
Winner Pro
Model CON-Winner Pro 1/1 10K(L) CON-Winner Pro 1/1 15K(L) CON-Winner Pro 1/1 20K(L)
Capacity 10000 VA/8000 W 15000 VA/12000 W 20000 VA/16000 W
Input
Voltage Range 190-520 VAC (3 phase) @ 50% load
305-520 VAC (3 phase) @100% load
Output
Rated Voltage 208/220/230/240VAC
网页_19_4356_4356
Rellable and stable sine wave output, intelligent battery management,double conversion online structure design, high-speed intelligent DSP control, providing stronger load capacity, ultra-wide input voltage range,multiple perfect protection functions, and ultra-high work efficiency.
Online double conversion, wide AC input range, 50Hz inverter mode,emergency shutdown function (EPO), charger capacity expansion for longer operation, multiple communications, three-stage charging design, compatible with engine input.
UPS
网页_17_4356_4356
HT11
Model CON-HT1106XS CON-HT1106XL CON-HT1110XS CON-HT1110XL CON-HT1115XS CON-HT1120XS
Capacity 6KVA 6KVA 10KVA 10KVA 15KVA 20KVA
Input voltage range 110～288VAC  (220/230/240VAC)
Rated output Voltage 220/230/240VAC
网页_19_4356_4356
Rellable and stable sine wave output, intelligent battery management,double conversion online structure design, high-speed intelligent DSP control, providing stronger load capacity, ultra-wide input voltage range,multiple perfect protection functions, and ultra-high work efficiency.
Online double conversion, wide AC input range, 50Hz inverter mode,emergency shutdown function (EPO), charger capacity expansion for longer operation, multiple communications, three-stage charging design, compatible with engine input.
Winner Pro
Model CON-Winner Pro 1/1 10K(L) CON-Winner Pro 1/1 15K(L) CON-Winner Pro 1/1 20K(L)
Capacity 10000 VA/8000 W 15000 VA/12000 W 20000 VA/16000 W
Input
Voltage Range 190-520 VAC (3 phase) @ 50% load
305-520 VAC (3 phase) @100% load
Output
Rated Voltage 208/220/230/240VAC
5G communication station
15
This product is designed for large-scale photovoltaic power generation,communication signal base stations, andlarge-scale factory backup power. With the self-developed management system, it can detect the operation stalus ofthe energy storage system in each location in real time.
The product supports customized services according to the application scenario and aclual situation. You only need to provide the corresponding parameters, and we canprovide the product. in addition, we can also provide thedesign of the overall plan.
Case Parameter 30KW/61.44kWh for base station
Battery Type Lithium iron phosphate Battery (LiFePO4)
Batttery Pack Capacity 3.2V 100Ah
AC Output 30KW

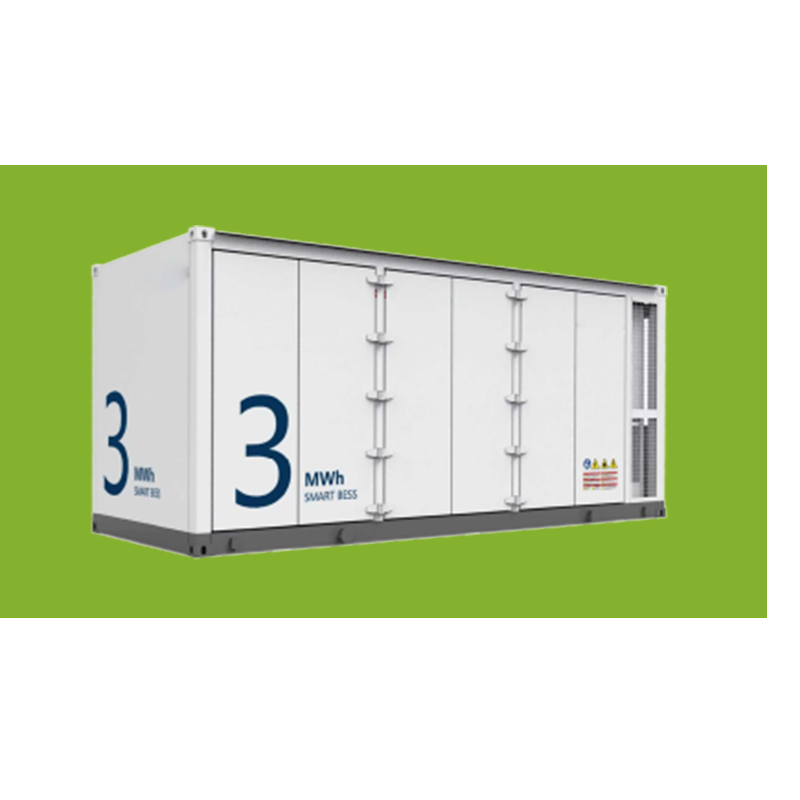

Container Energy Storage System

Key Solution In The Energy-storage Field
Modular design, flexibility, and rapid-deployment capability, containerized energy-storage equipment has become a key solution in the storage sector.
Plug-in Customization
Customized energy-storage solutions represent a major trend in the new-energy storage industry. They deliver personalized systems that match each client’s exact needs, enabling more efficient, safer, and more economical energy storage and management.
hoose our customized storage service and you’ll receive a technically advanced, high-performance, cost-optimized professional solution that maximizes the value of your energy projects.

产品集装箱
Containerized energy storage turns large-scale batteries into a standardized, shippable, weather-proof “energy appliance” that can be installed, scaled, relocated or redeployed almost anywhere, slashing both time-to-revenue and total cost of ownership.
The product supports customized services according to the application scenario and actual situation. You only need to provide the corresponding parameters, and we can provide the product. In addition, we can also provide the design of the overall plan.
Container Energy Storage System
产品集装箱
Containerized energy storage turns large-scale batteries into a standardized, shippable, weather-proof “energy appliance” that can be installed, scaled, relocated or redeployed almost anywhere, slashing both time-to-revenue and total cost of ownership.
The product supports customized services according to the application scenario and actual situation. You only need to provide the corresponding parameters, and we can provide the product. In addition, we can also provide the design of the overall plan.

Key Solution In The Energy-storage Field
Modular design, flexibility, and rapid-deployment capability, containerized energy-storage equipment has become a key solution in the storage sector.
Plug-in Customization
Customized energy-storage solutions represent a major trend in the new-energy storage industry. They deliver personalized systems that match each client’s exact needs, enabling more efficient, safer, and more economical energy storage and management.
hoose our customized storage service and you’ll receive a technically advanced, high-performance, cost-optimized professional solution that maximizes the value of your energy projects.
