BATTERY
ENERGY STORAGE SYSTEM

The battery energy storage system adopts a modular design, and users can increase or decrease the capacity of the system during use. The high-voltage and low-voltage systems adopt a common battery pack design, which increases product combination flexibility and reduces dealer inventory pressure. The system can support 1~3phase inverter.
Inverter + ESS

Inverter + ESS Battery energy storage system Portable power station Industry ESS system Inverter Solar Panel

Be Partner

Be Partner Customization Contact Community Case Download Privacy Policy

APPLICATION

  • BATTERY SYSTEMS
    BATTERY SYSTEMS
  • BATTERY SYSTEMS
    BATTERY SYSTEMS
  • OFF GRID & BACKUP
    OFF GRID & BACKUP
  • SELF CONSUMPTION
    SELF CONSUMPTION
  • RESIDENTIAL & COMMERCIAL
    RESIDENTIAL & COMMERCIAL
  • LFP BATTERIES
    LFP BATTERIES

STRENGTH

Integraive and convenient

Integraive and convenient

With the design of the inverter + energy storage system, the user does not need redundant wiring, which simplifies the installation steps. In addition, users do not need to consider the choice of inverters, CONCENPOWER provides users with more suitable one-stop energy storage services
Industrial Frequency Inverter

Industrial Frequency Inverter

High stability, high overload capacity. Effective protection of user and product safety. All CONCENPOWER products take safety as the top priority.
5ms Mode Switch Time

5ms Mode Switch Time

Shorter working mode switching, when the battery is exhausted, the system can automatically switch modes within 5ms, and the electrical appliances at the user end will not be affected in any way, protecting the life of the electrical appliances.
Wider application

Wider application

This series of products reduces the requirements for the installation environment and is more in line with the diversified market. There is no need to configure an additional inverter, and there is no need to choose a load-bearing wall for installation.

High Voltage Series System

Low Voltage Series System
The high-voltage battery cabinet is composed of 3-8 battery packs connected in series. The voltage range is from 153.6V to 409.6V. Depending on the capacity of a single battery pack, the capacity of a single battery cabinet ranges from 7.5kwh to 20Kwh, 15kwh to 40kwh, and 30kwh to 80kwh. A single battery cabinet can support 1-3 phase inverters.A high-voitage series energy storage system formed by connecting battery packs in series. In addition, 1 to 15 battery canbinets can be directly connected in parallel, and the total capacity can achieve 7.5kwh to 300kwh,15kwh to 600kwh, 30kwh to 1200kwh. The high-voltage series system works with the battery combiner box, which can support 1 ～ 3 phase inverters
2.5Kwh
Battery Pack		 3 4 crop_1727257976029 crop_1727258567421 crop_1727258599491 crop_1727258618859
Number of Package 3 4 5 6 7 8
Usable Capacity 7.5Kwh 10Kwh 12.5Kwh 15Kwh 17.5Kwh 20Kwh
5 Kwh
Battery Pack
Number of Package 3 4 5 6 7 8
Usable Capacity 15Kwh 20Kwh 25Kwh 30Kwh 35Kwh 40Kwh
10 Kwh
Battery Pack
Number of Package 3 4 5 6 7 8
Usable Capacity 30Kwh 40Kwh 50Kwh 60Kwh 70Kwh 80Kwh
Rack-mounted
5 Kwh
Battery Pack
Number of Package 1 2 3 4 5 6
Usable Capacity 5Kwh 10Kwh 15Kwh 20Kwh 25Kwh 30Kwh
10 Kwh
Battery Pack
Number of Package 1 2 3 4 5 6
Usable Capacity 10Kwh 20Kwh 30Kwh 40Kwh 50Kwh 60Kwh
产品(2)
The Rack-mounted battery cabinet is composed of 1-6 battery packs connected in parallel. The voltage is stable at 51.2V. Depending on the capacity of a single battery pack, the capacity of a single battery cabinet ranges from 2.66kwh to 15.96Kwh, 5kwh to 30kwh, and 10kwh to 60kwh. A single battery cabinet can support 1-3 phase inverters. A Rack-mounted energy storage system formed by connecting battery packs in parallel. In addition, 1 to 15 battery canbinets can be directly connected in parallel, and the total capacity can achieve 2.66kwh to 239.4kwh,5kwh to 450kwh, 10kwh to 900kwh. The Rack-mounted parallel system works with the battery combiner box, which can support 1-3 phase inverters
Rack-mounted
产品(2)
The Rack-mounted battery cabinet is composed of 1-6 battery packs connected in parallel. The voltage is stable at 51.2V. Depending on the capacity of a single battery pack, the capacity of a single battery cabinet ranges from 2.66kwh to 15.96Kwh, 5kwh to 30kwh, and 10kwh to 60kwh. A single battery cabinet can support 1-3 phase inverters. A Rack-mounted energy storage system formed by connecting battery packs in parallel. In addition, 1 to 15 battery canbinets can be directly connected in parallel, and the total capacity can achieve 2.66kwh to 239.4kwh,5kwh to 450kwh, 10kwh to 900kwh. The Rack-mounted parallel system works with the battery combiner box, which can support 1-3 phase inverters
5 Kwh
Battery Pack
Number of Package 1 2 3 4 5 6
Usable Capacity 5Kwh 10Kwh 15Kwh 20Kwh 25Kwh 30Kwh
10 Kwh
Battery Pack
Number of Package 1 2 3 4 5 6
Usable Capacity 10Kwh 20Kwh 30Kwh 40Kwh 50Kwh 60Kwh

Wall Mounting ESS system

3(1)(1)
Wall Mounting ESS system is divided into two types: 4.8kWh / 9.6kWh. It can support various types of inverters and adopts a wall-mounted design to reduce the space occupied during installation.
 It can be used in villas, yurts, farms, homes, etc.
Model CON-WM4.8P CON-WM9.6P
Battery Voltage Range 40V-58.4V 40V-58.4V
Maximum power 5.12KW 10.24KW

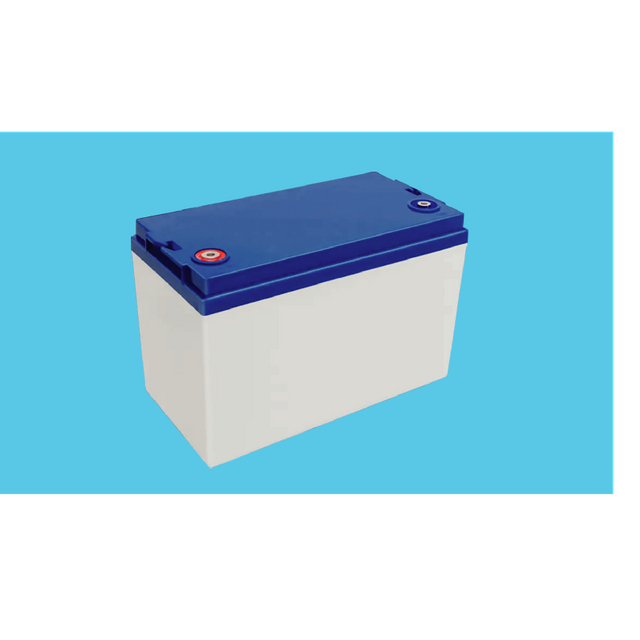

Replacement LiFePO4 to Lead-acid
NP51100A1 Lithium Battery
Battery Type Lithium iron phosphate Battery (LiFePO4)
Batttery Pack Capacity 1331 Wh
Cont. Ouput Current 100A
Cont. Input Current 100A
Bttery Pack Voltage 12.8V
Operating Voltage 10V~14.4V
铅改锂电池
This product can directly replace traditional lead-acid batteries for series and parallel use. While retaining the characteristics of lead-acid batteries that can be freely connected and combined, it integrates the high discharge depth of lithium iron phosphate batteries.
Widely applicable to various lead-acid battery application environments, such as golf carts, electric low-speed vehicles, sightseeing vehicles, solar lamps, solar monitoring, etc.
Replacement LiFePO4 to Lead-acid
铅改锂电池
This product can directly replace traditional lead-acid batteries for series and parallel use. While retaining the characteristics of lead-acid batteries that can be freely connected and combined, it integrates the high discharge depth of lithium iron phosphate batteries.
Widely applicable to various lead-acid battery application environments, such as golf carts, electric low-speed vehicles, sightseeing vehicles, solar lamps, solar monitoring, etc.
NP51100A1 Lithium Battery
Battery Type 51.2V(16S)
Batttery Pack Capacity 100Ah/200Ah
Cont. Ouput Current 0.5C
Cont. Input Current 1C
Bttery Pack Voltage 0.5C
Operating Voltage 1C
